Harden Netapp vServer CIFS

CIFS (Common Internet File System) is usually used for file sharing in Windows environments. When running CIFS on a NetApp vServer, security hardening is crucial to prevent unauthorized access and data integrity.

With some simple settings within ONTAP we can fulfill those modern security requirements. Before we can start hardening, on AD-Side several requirements should be already implemented, for example:

  • Enabling SMB Signing (GPO)
  • Disabling SMBv1
  • Forcing LDAPs
  • Kerberos authentication

vServer CIFS security

Inspect current security settings

After connecting to our ONTAP Node within ssh, we should at first inspect our current status. Therefore chose a vServer which runs CIFS:

Bash
vserver cifs security show -vserver VSERVERNAME

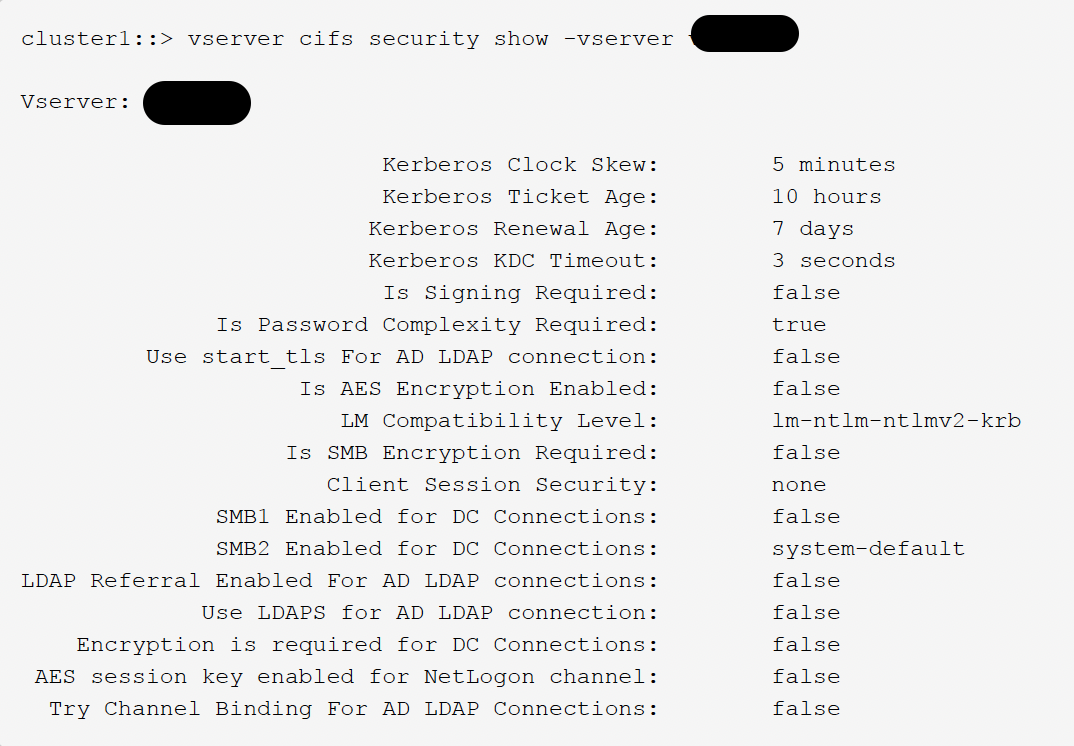

Output (default settings): post18_1

LDAPs

I wrote an article about this topic: Enable LDAPS for AD-Integrated Netapp SVM's

SMB Signing

SMB Signing is a security feature that digitally signs SMB packets to verify their origin and authenticity. This prevents tampering and mitigates man-in-the-middle attacks. If enabled, ONTAP accepts SMB messages only if they have valid signatures.

Bash
vserver cifs security modify -vserver VSERVERNAME -is-signing-required true

Changes to the encryption settings take effect for new connections. Existing connections are unaffected.

Display information where sessions are signed:

Bash
vserver cifs session show -vserver VSERVERNAME -is-session-signed true

LDAP signing/sealing

Signing LDAP traffic verifies that the packaged data comes from a known source. Signing verifies the integrity of the LDAP payload data through secret key technology, while sealing encrypts the LDAP payload to prevent the transmission of sensitive information in plain text.

ONTAP offers two options:

  • Signing
  • Signing and Sealing (recommended)
Bash
vserver cifs security modify -vserver VSERVERNAME -session-security-for-ad-ldap seal

Existing connections will not be impacted by this change.

LDAP channel binding

LDAP channel binding and signing enhance security between LDAP clients and Active Directory domain controllers. However, insecure default settings allow communication without enforcing these protections, creating a privilege escalation risk.

Microsoft advises applying the hardening measures in ADV190023.

Channel binding does have two requirements:

  1. LDAPs or Start-TSL is enabled
  2. Session security is set to sign or seal

If those requirements are met, ONTAP tries channel binding by default. Nevertheless we can reenable it (which i would recommend):

Bash
vserver cifs security modify -vserver VSERVERNAME -try-channel-binding-for-ad-ldap true

LMCompatibilityLevel | Authentication security

You can configure the SMB server's minimum security level (LMCompatibilityLevel) to align with your business security needs for SMB client access. This defines the lowest security token level the server will accept from clients.

  • SMB servers in workgroup mode support only NTLM authentication.
  • Kerberos is only available if CIFS is domain integrated.
  • LMCompatibilityLevel applies only to SMB client authentication, not administrative authentication.
  • Four security levels are available for minimum authentication settings.
    • lm-ntlm-ntlmv2-krb (default)
    • ntlm-ntlmv2-krb
    • ntlmv2-krb (Recommended, ONTAP will force Kerberos if it fails it will fall back to ntlmv2)
    • krb (Kerberos only)
Bash
vserver cifs security modify -vserver VSERVERNAME -lm-compatibility-level ntlmv2-krb

Ensure your Clients connection while using the DNS-Name, due to Kerberos authentication! Your DNS should be set up properly.

Kerberos AES encryption

For maximum security in Kerberos-based communication, enable AES-256 and AES-128 encryption on the SMB server. Beginning with ONTAP 9.13.1, AES encryption is enabled by default.

The SMB server supports the following Kerberos encryption types: - AES-256 - AES-128 - DES - RC4-HMAC

For maximum security, enable AES-256 ncryption on the SVM:

Bash
vserver cifs security modify -vserver VSERVERNAME -advertised-enc-types aes-256

In earlier ONTAP versions (9.13.1) the administrator is prompted to enter the administrative AD credentials for the OU containing the SMB server.

Encrypt communication to DCs

Make sure your Domain Controllers supports SMB v3 (this is meanwhile state of the art..) because SMB encryption only negotiates with SMB v3 connections. If a DC does not support SMB v3, ONTAP will not connect to it.

Bash
vserver cifs security modify -vserver VSERVERNAME -encryption-required-for-dc-connection true

SMB Encryption (use with caution)

Make sure that all requirements are met for SMB Encryption in your environment. Windows clients beginning with Windows Server 2012 and Windows 8 support SMB encryption.

SMB encryption on the SVM is managed through two settings:

  • An SMB server security option enabling encryption on the SVM.
  • An SMB share property controlling encryption per share.

You can enforce encryption for all SVM data or only for specific shares. SVM-level settings override share-level configurations.

This is how to setup encryption on SVM level:

Bash
vserver cifs security modify -vserver VSERVERNAME -is-smb-encryption-required true

SMB encryption increases CPU usage on both Windows clients and the server, impacting performance, though network traffic remains unchanged.

Changes to the encryption settings take effect for new connections. Existing connections are unaffected.

References

docs.netapp - Configure and enable CIFS SMB signing and sealing

docs.netapp - Microsoft Security Advisory: ADV190023

docs.netapp - Overview of using LDAP

ADV190023

Support.Microsoft - 2020, 2023, and 2024 LDAP channel binding and LDAP signing requirements for Windows (KB4520412)

kb.netapp - Which ONTAP version allows to enable LDAP channel binding

docs.netapp - Set the SMB server minimum authentication security level

docs.netapp - Performance impact of SMB encryption

docs.netapp - SMB encryption overview
